Flexibility goes hand-in-hand with our milling tables. The outcome - efficient production.
Milling tables from Demanders can be used for milling, drilling and grinding. These tables are an excellent complement to many machine tools and broaden the fields of application for tools such as vertical drilling machines. Unparalleled stability and precision for world-class quality. Flexibility is further improved by the fact that our designs can be easily customised. The result is greater efficiency and cost-savings.
Those of you looking for alternative production milling tables will be pleased to learn that Demanders is planning more extensive cooperation with Spanish firm Bazus, one of the world’s leading suppliers in this field. Together, we can offer one of the market’s broadest ranges of milling tables with improved flexibility, as well as customisation.

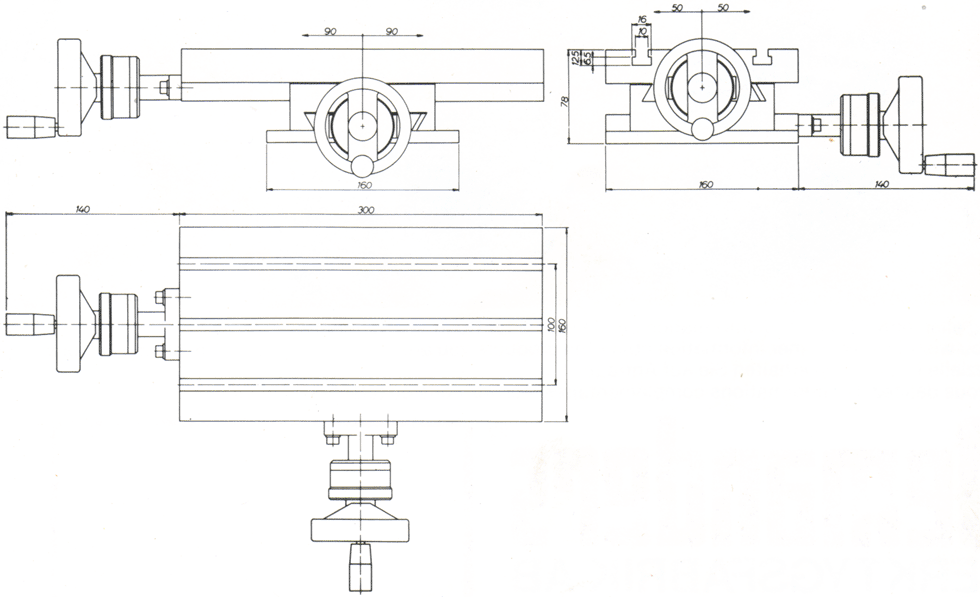

FB-H is made of premium materials and has a precision-milled table surface and guides. The table has three T-slots. The guides have been made as wide as possible for optimum stability. Parallelism of 0.03 mm. A pitch accuracy of 0.01 mm. Tables can be supplied with the wheel for longitudinal feed on either side. The scales are graduated to 0.05 mm.
FB-101, FB-102 and FB-402 are made using top-quality castings and have precision-milled guides and surfaces, with oil channels and three T-slots. The table, top slide rest and carriage are all reinforced for maximum stability. Tables have adjustable rules in both feed directions and are equipped with a locking device in both directions. The feed screws are fitted with axial bearings.
Parallelism of 0.03 mm. A pitch accuracy of 0.01 mm per 100 mm. The scales are graduated to 0.05 mm or in inches. Tables can be equipped with our mechanical gearbox (FB-02) for automatic longitudinal feed or cross feed, as well as a dust guard for the cross-feed screw.
